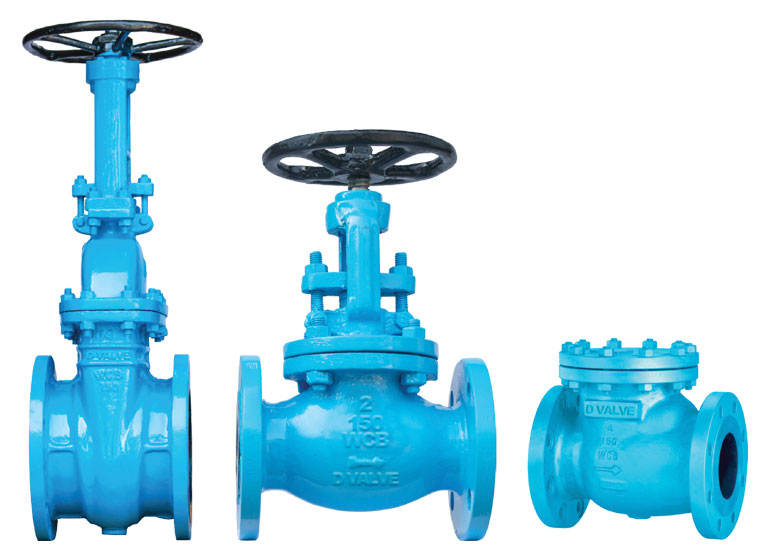

CAST STEEL GATE GLOBE CHECK VALVES


GENERAL SPECIFICATIONS
ITEM
No. 		 ITEM DESCRIPTION MATERIAL OF CONSTRUCTION**   ITEM
No. 		 ITEM DESCRIPTION  MATERIAL OF CONSTRUCTION**
    ASTM A216 WCB / A217 WC6, WC9,     ASTM A216 WCB / A217 WC6, WC9,
01 BODY C5, C12 / A351 CF8, CF8M, CF3, CF3M / A352 LCB / A890 DUPLEX 07 GLAND FLANGE C5, C12 / A351 CF8, CF8M, CF3, CF3M / A352 LCB / A890 DUPLEX
 02  BONNET/COVER ASTM A216 WCB / A217 WC6, WC9, C5, C12 / A351 CF8, CF8M, CF3, CF3M / A352 LCB / A890 DUPLEX  08  YOKE SLEEVE/ YOKE BUSH ASTM A439 D2/ASTM A473 416 / S.G.IRON
    ASTM A216 WCB / A217 WC6, WC9, 09 GLAND PACKING GRAFOIL / PTFE
03 WEDGE/PLUG/DISC C5, C12 / A351 CF8, CF8M, CF3,
CF3M / A352 LCB / A890 DUPLEX
( HALF STELLITED / FULL STELLITED ) 		10 GASKET SPIRAL WOUND SPIRAL WOUND SS304 / 304L / 316 / 316L / 321 + GRAFOIL / PTFE
    ASTM A216 WCB / A217 WC6, WC9, 11 EYE BOLT/NUT ASTM A193 B7 / A194 2H
04 SEAT RING C5, C12 / A351 CF8, CF8M, CF3,
CF3M / A352 LCB / A890 DUPLEX
( HALF STELLITED / FULL STELLITED ) 		12 BODY STUD ASTM A193 B7 / B7M / B8 / B8M / B16 / ASTM A320 / L7
 05  STEM ASTM A276 SS410 / SS 304 / SS 304L / SS 316 / SS 316L / DULPEX  13  BODY NUT ASTM A194 2H / 2HM / 8 / 8M / ASTM A320 / 7
 06  GLAND ASTM A276 SS410 / SS 304 / SS 304L / SS 316 / SS 316L / DULPEX  14  HAND WHEEL S.G.IRON / MALLEABLE IRON / CARBON STEEL
 **Other Materials of construction are available upon request to meet the application.
