STRAINERS
We manufacture Strainers that permit the straining & filtering of wide variety of fluids, to retain solids of almost any size. All baskets are easily removable & cleanable. The range of basket strainers offered by us are precision designed to meet the specific requirements of removing foreign particles in the flowing applications or services. Strainers flawless functionality standards also help in increasing the overall service life of the pumps, valves and other flow control equipment.
| GENERAL SPECIFICATIONSOur Product Range | |
| Model | DV-YTS1, DV-TTS2, DV-BTS3 |
| Sizes | NPS ½” (DN 15) – NPS 16” (DN 400) |

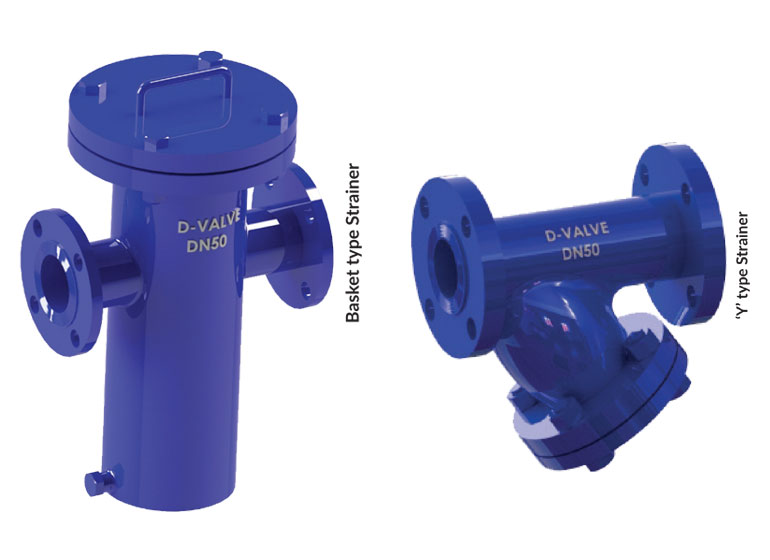

| Type | ‘Y’ type strainers, ‘T’ type strainers, Basket type strainers |
| Pressure Class | Class 150#, Class 300# |
| Ends Connection | Flanged end |
| Design Standard | Manufacture, ASME B 16.34 |
| Ends Conformity | ASME B 16.5 (Other flange standards are available upon request) |
| Face to Face | Manufactured Std. / ASME B 16.10 |
| Pressure Testing Standard | API 598 |
| Material of Construction | Wide range and most suitable material selection available for any kind of application. |
| Material | WCB, WPB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20, CAST IRON, etc. |
