METAL SEAT BALL VALVES

There must be an alternate for soft seated ball valves because there are limitations of soft seated floating ball valves for certain applications like high temperature, abrasive, slurry. D valve has a wide range of high performance metal seated ball valves in floating design to overcome the above limitations of soft seated floating ball valves. The special coatings provided on ball & seat surfaces ensure reliability and durability in any severe service conditions. Precisely machined and lapped metal seat and ball combination guarantees good repeatability in performance. Two Pieces and Three piece metal seat Ball Valves are available.

Lip seal Design Metal Seated Ball Valves also available for Hydro carbon Applications.

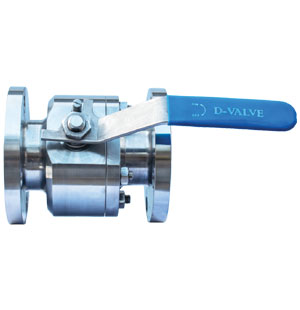

Metal Seat Ball Valves

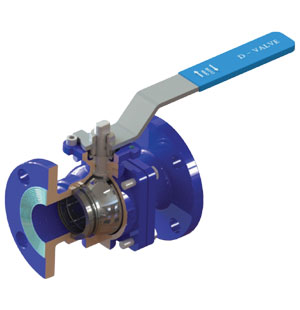

Metal Seat Ball Valves
GENERAL SPECIFICATIONS
Model DV-FBM3, DV-CBM2, DV-CBM3
Sizes NPS ½” (DN 15) – NPS 8” (DN 200)
Type Floating Type
Seat Design Metal Seat and Lip seal
Pressure Class ASME Class 150# - Class 300#
Flow bore Full Port, Reduced Port
End Connection Flanged FF, Flanged RF, Flanged RTJ, Butt Weld
Valve Design Standard API 6D, ASME B 16.34 / ISO 17292
Flange Conformity ASME B 16.5 (Other flange standards are available upon request), ASME B 16.25 (Buttweld)
Face to Face API 6D / ASME B 16.10
Pressure Testing Standard FCI 70.2 / ISO 5208 / BS EN 12266-1 / API 598
Fire safe Design / Standard API 6FA
Material of Construction Wide range and most suitable material selection available for any kind of application. Refer to Fig. 3G for identifying components and materials.
Valve operation All our ball valves on the above ranges are manually operated with Handle/Lever/Wrenches. Gearboxes and Actuators are available upon request.

Applications:

  • High Temperature
  • Abrasive Media
  • Mining
  • Chemical & Process Industries
  • Slurry
  • Paper & Pulp
  • Hydro Carbon Applications


Design Two Piece and Three Piece
Leakage Class Class IV Class V
Class VI – Uni-Directional


Features:

01 – SINGLE PIECE SOLID BALL WITH OVERLAY
Process Coating Thickness Working Temperature Application
Electro less Nickel Plating (ENP) 50µ - 80µ 400°C Oil & Gas, General application
Hard chromium Plating 50µ - 80µ 300°C Oil & Gas, General application
Tungsten Carbide - HVOF 250µ - 300µ 400°C Abrasive application, Paper & Pulp, Mining
Chrome carbide - HVOF 250µ - 300µ  800°C Abrasive application,
High Temperature application, Paper & Pulp, Mining
Stellite by HVOF 250µ - 300µ 600°C Abrasive application, Paper & Pulp, Mining

02 – HIGH PERFORMANCE GRAPHITE SEAT SEALS
03 – ANTI-BLOWOUT STEM
04 – LIVE LOAD LOW EMISSION PACKING
05 – SPRING ENERGIZED SEATS
06 – PRECISELY FINISHED AND COATED METAL SEATS


Process Coating Thickness Working Temperature Application
Tungsten Carbide - HVOF 250µ - 300µ 400°C Abrasive application, Paper & Pulp, Mining
 Chrome carbide - HVOF 250µ - 300µ  800°C Abrasive application,
High Temperature application, Paper & Pulp, Mining
Stellite by HVOF 250µ - 300µ 600°C Abrasive application, Paper & Pulp, Mining
Stellite by Weld 2 mm – 3 mm 600°C Abrasive application, Paper & Pulp, Mining
