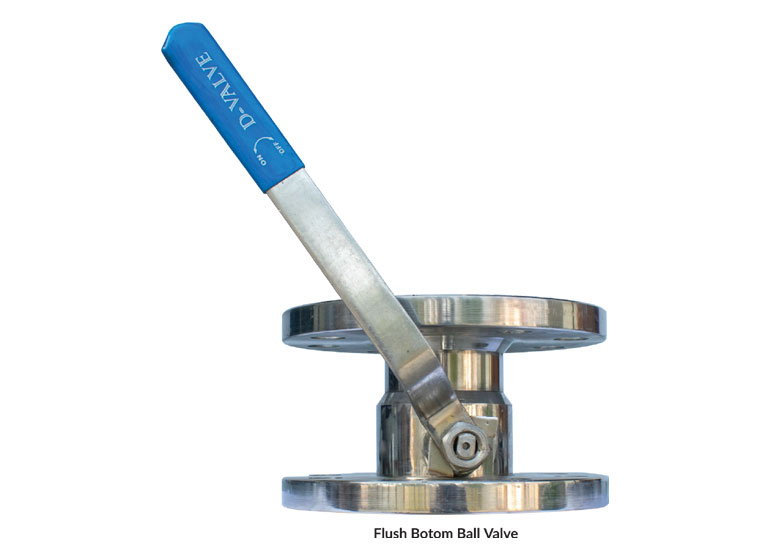

FLUSH BOTTOM BALL VALVES
D Valve manufactured and tested Flush bottom ball valves are complying international design standards such as BS 5351, These valves are designed to meet most stringent operation requirements and ensured quality and reliability throughout the life cycle. We understand the pain of customers on maintenance of components/valves; these valves are designed and assembled with few components hence less maintenance required in service life. equipment.
| Our Product Range | |
| Model | DV-CFB1 |
| Sizes | NPS 2” (DN 50) – NPS 6” (DN 150) |
| Type | Single Piece Design Type |
| Seat Design | Soft Seat |
| Pressure Class | Class 150# |
| Flow bore | Full port |
| Ends Connection | Flanged RF, Flanged FF |
| Valve Design Standard | BS 5351, ISO 17292 |
| Flange Conformity | ASME B 16.5 (Other flange standards are available upon request) |
| Face to Face | Manufactured std. |
| Pressure Testing Standard | ISO 5208 / BS 5146 |
| Material of Construction | Wide range and most suitable material selection available for any kind of application. |
| Body / Side piece | ASTM A351 Gr. CF8, CF3, CF8M,CF3M |
| Ball | ASTM A276 Tp. SS304, SS304L, SS316, SS316L |
| Seat / seal | PTFE / RPTFE |
| Valve operation | All our ball valves are manually operated with Handle/Lever/Wrenches by default. (Actuator/Gearbox for all above sizes are availbale upon request.) |
