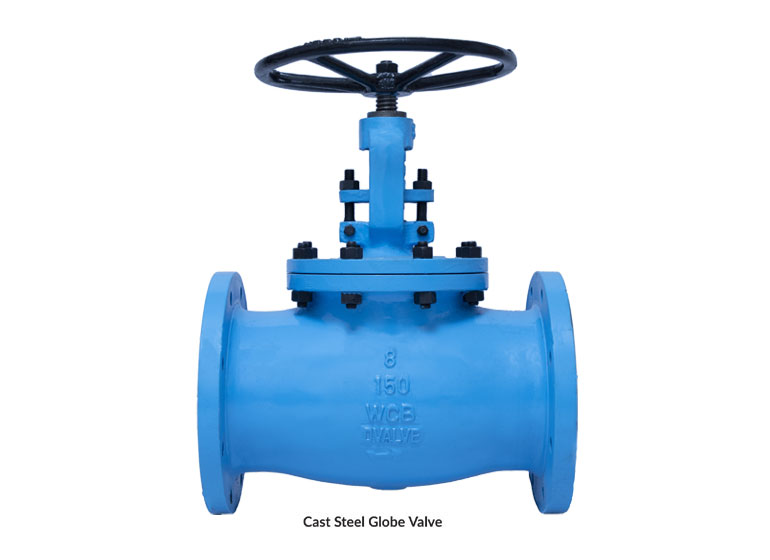

CAST STEEL GLOBE VALVES

D Valve in-house designed, manufactured and tested cast steel globe valves are complying international design standards such as BS 1873, ASME B 16.34, MSS SP-144. The quality is ensured from the receipt of components till the despatch of the valve to customer. We understand the pain of customers on maintenance of components/valves; these valves are designed and assembled with few components hence less maintenance required in service life. We assure our product range meets most of the customer requirement w.r.t size, pressure class, material of construction, design.


GENERAL SPECIFICATIONS
Model DV-CGB1, DV-CGB2
Sizes NPS 2” (DN 50) – NPS 12” (DN 300)
Type Bolted bonnet ( Class 150# to class 600# - 12” ), Pressure seal ( Class 900# to Class 2500# - 4”)
Seat Design Metal Seat
Pressure Class Class 150#, Class 300#, Class 600#, Class 900#, Class 1500#, Class 2500#
Flow bore Standard port
Ends Connection Flanged RF, Flanged FF, Flanged RTJ, Butt weld end
Valve Design Standard BS 1873, ASME B 16.34, MSS SP-144
Flange Conformity ASME B 16.5 (Other flange standards are available upon request)
Face to Face ASME B 16.10
Pressure Testing Standard API 598 / BS EN 12266-1
Material of Construction Wide range and most suitable material selection available for any kind of application. ( Refer Table No. 17 )
Valve operation All our globe valves i) class 150# upto NPS 10” (DN 250) are manual operated with Handwheel, NPS 12” (DN300) and above gear operated. ii) class 300# upto NPS 8” (DN 200) are manual operated with Handwheel, NPS 10” (DN250) and above gear operated.
iii) class 600# upto NPS 6” (DN 150) are manual operated with Handwheel, NPS 8” (DN200) and above gear operated. iv) class 900# up NPS 3” (DN 80) are manual operated with Handwheel, NPS 4” (DN100) and above gear operated. v) class 1500# upto NPS 2 ½” (DN 65) are manual operated with Handwheel, NPS 3” (DN80) and above gear operated. vi) class 2500# upto NPS 2 ½” (DN 65) are manual operated with Handwheel, NPS 3” (DN80) and above gear operated. (Actuator/Gearbox for all above sizes are availbale upon request)

Features:

  • 01 – OUT SIDE SCREW & YOKE TYPE, BOLTED BONNET.
  • 02 – PLUG TYPE DISC.
  • 03 – VALVE WITH INTEGRAL BACK SEAT ARRANGEMENT.
  • 04 – VALVES WITH INTEGRAL SEAT ARRANGEMENT.
  • 05 – PRESSURE SEAL DESIGN (for class 900# to class 2500#).

On Request

  • Locking Arrangement.
  • Gear / Electric Actuator Operation.
  • Parabolic Plug for Linear Characteristic
  • Guided & Soft Seat Plug.
  • Renewable Seat Ring.
  • NACE as per MR0175 / MR0103.
  • Stellited Hard Faces.
  • For Low Temp & Cryogenic Service as per BS 6364.
  • All Exotic Materials (Super duplex, Hast alloy, Monel,etc).
  • Jacketed Valves.
