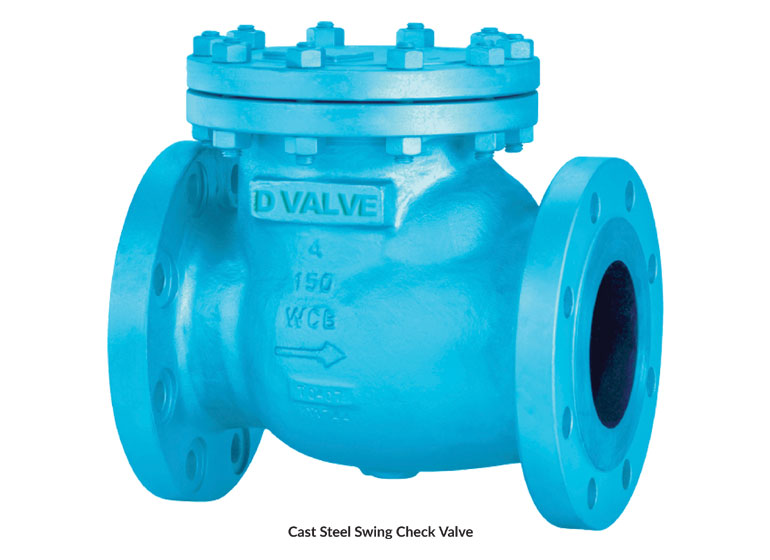

CAST STEEL SWING CHECK VALVES

D Valve in-house designed, manufactured and tested cast steel globe valves are complying international design standards such as BS 1868, API 6D, ASME B 16.34, MSS SP-144. The quality is ensured from the receipt of components till the dispatch of the valve to customer. We understand the pain of customers on maintenance of components/valves; these valves are designed and assembled with few components hence less maintenance required in service life. We assure our product range meets most of the customer requirement w.r.t size, pressure class, material of construction, design.


GENERAL SPECIFICATIONS

Model

DV-CSC1

Sizes

NPS 2” (DN 50) – NPS 12” (DN 300)

Type

Bolted Cover ( Class 150# to class 300# )

Seat Design

Metal Seat

Pressure Class

Class 150#, Class 300#

Flow bore

Standard Port

End Connection

Flanged RF, Flanged FF, Flanged RTJ, Butt weld end

Valve Design Standard

BS 1868, API 6D, ASME B 16.34, MSS SP-144

Flange Conformity

ASME B 16.5 (Other flange standards are available upon request)

Face to Face

ASME B 16.10

Pressure Testing Standard

API 598 / BS EN 12266-1

Material of Construction

Wide range and most suitable material selection available for any kind of application.
( Refer to Table No. 17 )

Features:

  • 01 – BOLTED COVER. ( for class 150# to class 600# ).
  • 02 – PRESSURE SEAL DESIGN ( for class 900# to class 2500# ).

On Request

  • API-6D Design & Testing.
  • Dashpot Arrangement.
  • NACE as per MR0175 / MR0103.
  • Stellite Hard Faces.
  • All Exotic Materials (Super duplex, Hast alloy, Monel, etc.,).
  • Jacketed Valves.
