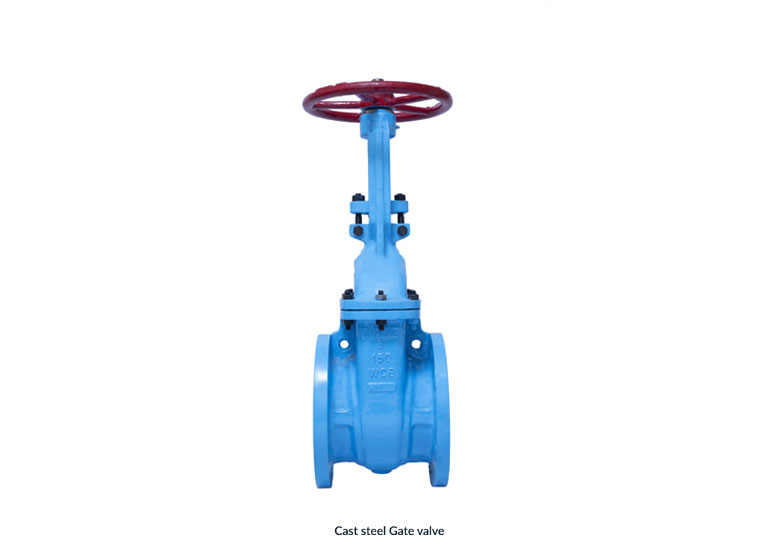

CAST STEEL GATE VALVES

D Valve in-house designed, manufactured and tested cast steel gate valves are complying international design standards such as API 600, ASME B 16.34, MSS SP-144 . The quality is ensured from the receipt of components till the dispatch of the valve to customer. We understand the pain of customers on maintenance of components/valves; these valves are designed and assembled with few components hence less maintenance required in service life. We assure our product range meets most of the customer requirement w.r.t size, pressure class, material of construction, design.


MATERIALS OF CONSTRUCTION
Model DV-CGT1, DV-CGT2
Sizes NPS 2” (DN 50) – NPS 24” (DN 600)
Type Bolted bonnet ( Class 150# - class 600# – Up to 24” ) Pressure seal ( Class 900# - Class 2500# – Up 10” )
Seat Design Metal Seat
Pressure Class Class 150# , Class 300#, Class 600#, Class 900#, Class 1500#, Class 2500#
Flow bore Standard port
Ends Connection Flanged RF, Flanged FF, Flanged RTJ, Butt weld end
Valve Design Standard API 600, ASME B 16.34, MSS SP-144
Flange Conformity ASME B 16.5 (Other flange standards are available upon request)
Face to Face ASME B 16.10
Pressure Testing Standard API 598 / BS EN 12266-1
Material of Construction Wide range and most suitable material selection available for any kind of application. ( Refer Table No. 17 )
Valve operation All our gate valves i) class 150# upto NPS 24” (DN 600) are manual operated with Handwheel, ii) class 300# upto NPS 16” (DN 400) are manual operated with Handwheel, NPS 18” (DN450) and above gear operated. iii) class 600# upto NPS 10” (DN 250) are manual operated with Handwheel, NPS 12” (DN300) and above gear operated. iv) class 900# upto NPS 5” (DN 125) are manual operated with Handwheel, NPS 6” (DN150) and above gear operated. v) class 1500# upto NPS 3” (DN 80) are manual operated with Handwheel,
NPS 4” (DN400) and above gear operated. vi) class 2500# upto NPS 2½” (DN 65) are manual operated with Handwheel, NPS 3” (DN80) and above gear operated. (Actuator/Gearbox for all above sizes are availbale upon request)

Features:

  • 01 – OUT SIDE SCREW & YOKE TYPE, BOLTED BONNET.
  • 02 – FLEXIBLE WEDGE.
  • 03 – VALVE WITH INTEGRAL BACK SEAT ARRANGEMENT.
  • 05 – PRESSURE SEAL DESIGN (for class 900# to class 2500#).

On Request

  • Locking Arrangement.
  • Gear / Electric Actuator Operation.
  • Solid Wedge.
  • NACE as per MR0175 / MR0103.
  • Stellite Hard Faces.
  • For Low Temp & Cryogenic Service as per BS 6364.
  • All Exotic Materials (Super duplex, Hast alloy, Monel, etc…)
  • Jacketed Valves
  • Bypass Arrangement.
